Flatbed Truck Lumber Tarp Cover – 18oz PVC Knife Coated Vinyl Tarpaulin

Product Details

Place of Origin: Zhejiang, China

Brand Name: Yitex

Certification: ISO9001; BSCI

Payment & Shipping Terms

Minimum Order Quantity: 10PCS

Price: $98 10PCS $97 200PCS

Packaging Details: PE bag + Pallet

Payment Terms: T/T

Supply Ability: 10000 Square Meter/Square Meters per Day

Get Best Price
Contact Now
Specifications
Highlight:
Material:
PVC Tarpaulin
Yarn Count:
1000x1000
Weight:
610 Gsm
Usage:
Flatbed Truck
Function:
Waterproof Heavy Duty
Material:
PVC Tarpaulin
Yarn Count:
1000x1000
Weight:
610 Gsm
Usage:
Flatbed Truck
Function:
Waterproof Heavy Duty
Description

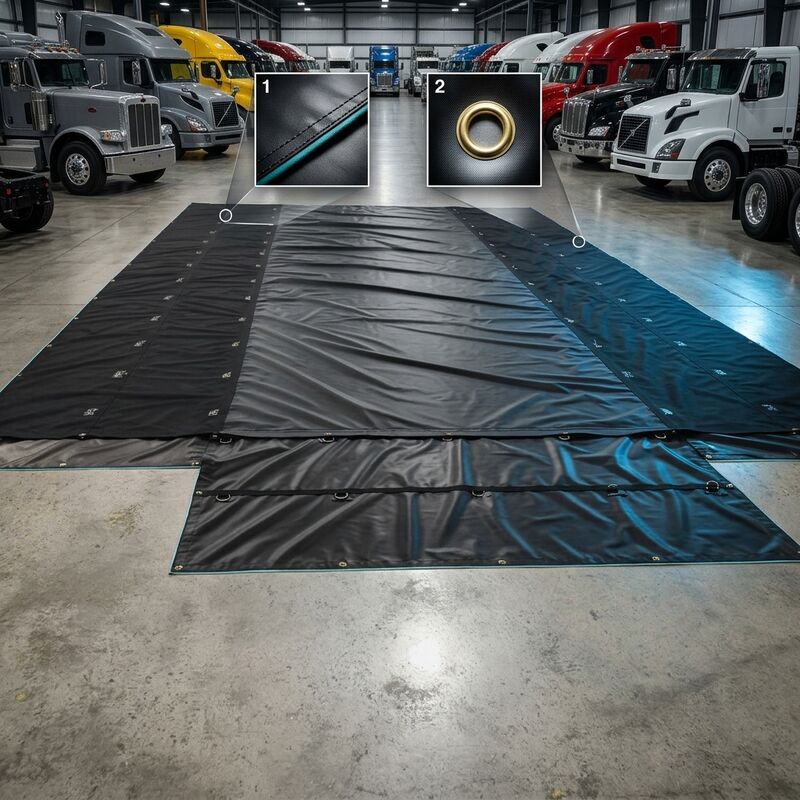

Flatbed Truck Lumber Tarp Cover – 18oz PVC Knife Coated Vinyl Tarpaulin

6 ft drops light weight lumber tarps for flatbed truck tarps

Products Description
Flatbed Truck Lumber Tarp Cover – 18oz PVC Knife Coated Vinyl Tarpaulin

Luxury Heavy Duty Lumber Tarp

Whether you are looking for a lumber, steel or custom tarp they are all made with similar components. In most cases we manufacture trucking tarps out of the 18oz vinyl coated fabric but weights range from 10oz-40oz. The vinyl panels are hot air welded together to create a strong bond for the proper size tarp to cover your load.

Manufacturing Technique

Another option common in the industry is grommets we offer 3/8”and 1/2”brass grommets. The clean brass grommets are inserted into the tarp using a hydraulic grommet press and reinforced and backed by a double layer vinyl tab finishing with a total of four layers of vinyl offering great durability.

Our tarps feature 2-inch reinforced hem webbing. This detail guards tarp ends from wear under high-speed highway winds and delivers dependable structural support during trailer securing.
Decades of experience in trucking tarp manufacturing informs our design. Cargo sizes differ from load to load, so our steel and lumber tarps include multiple built-in tie-down points for ropes or rubber straps. We offer flexible configurations to suit your operating preferences.
Anchor hardware is engineered for durability:
  • Stainless steel D-rings for corrosion resistance
  • Mounted onto heavy strength webbing tabs
  • Inserted and double stitched under the main hem webbing
  • Reinforced assembly creates extremely secure tie-down anchor points
Product Parameters
Flatbed Truck Lumber Tarp Cover – 18oz PVC Knife Coated Vinyl Tarpaulin
Product Parameters
Product name Lumber Tarp
Size 4inch-8inch
Specification 16'x27x+4’,20'x27x+6',27'x24'+8'
Material 18oz vinyl tarpaulin
Color Grey,Red,Blue,Black
Weight 40kg,50kg,60kg
Process Basic Fabric Weight Thickness Width Length
Laminated 500*200 12*18 280g-500g 0.22-0.4 ≦3.2m 50-100m
500*300 12*18
500*500 9*9 280g-600g 0.22-0.48
500*500 12*18
Semi-Coated 840*840 18*18 350g-1000g 0.28-0.8 ≦3.2m 50-100m
1000*1000 9*9 400g-1000g 0.32-0.8
1000*1000 18*18 500g-2500g 0.4-2.0
1000*1000 20*20 500g-2500g
1300*1300 23*24 500g-2500g
Coated 500*500 28*28 250g-650g 0.2-0.5 ≦3.2m 50-100m
500*500 18*25 300g-330g 0.24-0.26 ≦5.5m 50-500m
500*1000 30*17 400g-500g 0.32-0.4 ≦3.2m
840*840 18*18 500g-850g 0.4-0.7 ≦5.5m
1000*1000 18*18 500g-2000g 0.4-2.0
1000*1000 20*20 500g-2000g 0.4-2.0
Flatbed Truck Lumber Tarp Cover – 18oz PVC Knife Coated Vinyl Tarpaulin
Product Parameters
Type lumber tarp with 4ft, 6ft, 8ft drop
Spec Detail

1.Material: PVC-coated polyester, 40% coating on underside, 60% coating on top

2.Grommets: #5 (5/8" inside dia.) brass grommets every 24"

3.D-Rings: 3 rows of stainless steel D-rings, box-stitched with protective flap. D-rings are spaced every 24" with a row at 31", 61", and 91".

4.Reinforcing: All hemmed edges reinforced with 2" webbing, double lock-stitched with UV-treated polyester thread

5.Weather Resistance: Waterproof, ultraviolet and mildew resistant

MOQ 10
Colors Black/Blue/Green/White/Orange/Silver/Stripe or Other Requirements
Process Basic Fabric Weight Thickness Width Length
Laminated 500*200 12*18 280g-500g 0.22-0.4 ≦3.2m 50-100m
500*300 12*18
500*500 9*9 280g-600g 0.22-0.48
500*500 12*18
Semi-Coated 840*840 18*18 350g-1000g 0.28-0.8 ≦3.2m 50-100m
1000*1000 9*9 400g-1000g 0.32-0.8
1000*1000 18*18 500g-2500g 0.4-2.0
1000*1000 20*20 500g-2500g
1300*1300 23*24 500g-2500g
Coated 500*500 28*28 250g-650g 0.2-0.5 ≦3.2m 50-100m
500*500 18*25 300g-330g 0.24-0.26 ≦5.5m 50-500m
500*1000 30*17 400g-500g 0.32-0.4 ≦3.2m
840*840 18*18 500g-850g 0.4-0.7 ≦5.5m
1000*1000 18*18 500g-2000g 0.4-2.0
1000*1000 20*20 500g-2000g 0.4-2.0
Flatbed Truck Lumber Tarp Cover – 18oz PVC Knife Coated Vinyl Tarpaulin
Customer Photos
Flatbed Truck Lumber Tarp Cover – 18oz PVC Knife Coated Vinyl Tarpaulin

Function

  • .Anti-UV, tear and abrasion resistance
  • .Resistant to weather elements including snow, rain, hail, strong gusts of wind
  • .Ensure that heavy cargo does not fall onto the road when loose or unsecured
  • .Containing and securing loads, truck tarps can also be used as truck sides and roof covers.
  • .Truck tarps is reducing the dragging effect on the vehicle. Therefore, you can easily increase the miles per gallon you get because the movement of air is more streamlined.
  • .Truck tarps are reusable, easy to deploy, easy fold and store away.
Installation Instructions

Recommended for tree hauling, agricultural, mining and industrial applications, and other severe applications. Besides containing and securing loads, truck tarps can also be used as truck sides and roof covers.

Product packaging
Company Profile
Flatbed Truck Lumber Tarp Cover – 18oz PVC Knife Coated Vinyl Tarpaulin

We are a company devoted ourself to provide the best PVC tarps,like truck cover, lumber tarp, snow removal tarps, PVC sichtschutzstreifen, Vinyl containment mat, etc.

Flatbed Truck Lumber Tarp Cover – 18oz PVC Knife Coated Vinyl Tarpaulin
FAQ

Q:Do you have your own factory?
Yitex: We are not trade company ,our company is a factory and produce all kinds of PVC Tarp, Poly Tarp,Canvas Tarp,Mesh Tarp,Clear Tarps,Construction Tarp, Truck &Transport Tarp, Agricultural &Industry Tarp,Custom All Purpose Tarp,Waterproof Cover, Custom Mat, Industrial Blankets, Packing Bag,Industrial Curtain,Garden Products,Tarp Accessories in China for many years, which are used in outdoor&indoor, waterproof, shading, agriculture, transport, gardening etc area.

Q:What's your MOQ?
Yitex: Normally ,100units per order.but small quantity is available.

Q:What's your delivery time?
Yitex:3-7days for sample,25-30days for mass production.

Q:What's your payment terms?
Yitex: For order: 30%T/T deposit at order in advance,70%T/T after receiving the copy of B/L.
For sample:100% Western Union or Paypal

Q:How can I get my sample or order?How can I know you sent the good?
Yitex: We will send you the goods by UPS,DHL,Fedex,EMS,Oversea Shippment or other forwarder,all with tracking number or B/L.

Q:How about your quality?
Yitex: Try a small order, you will have your own judgment!
